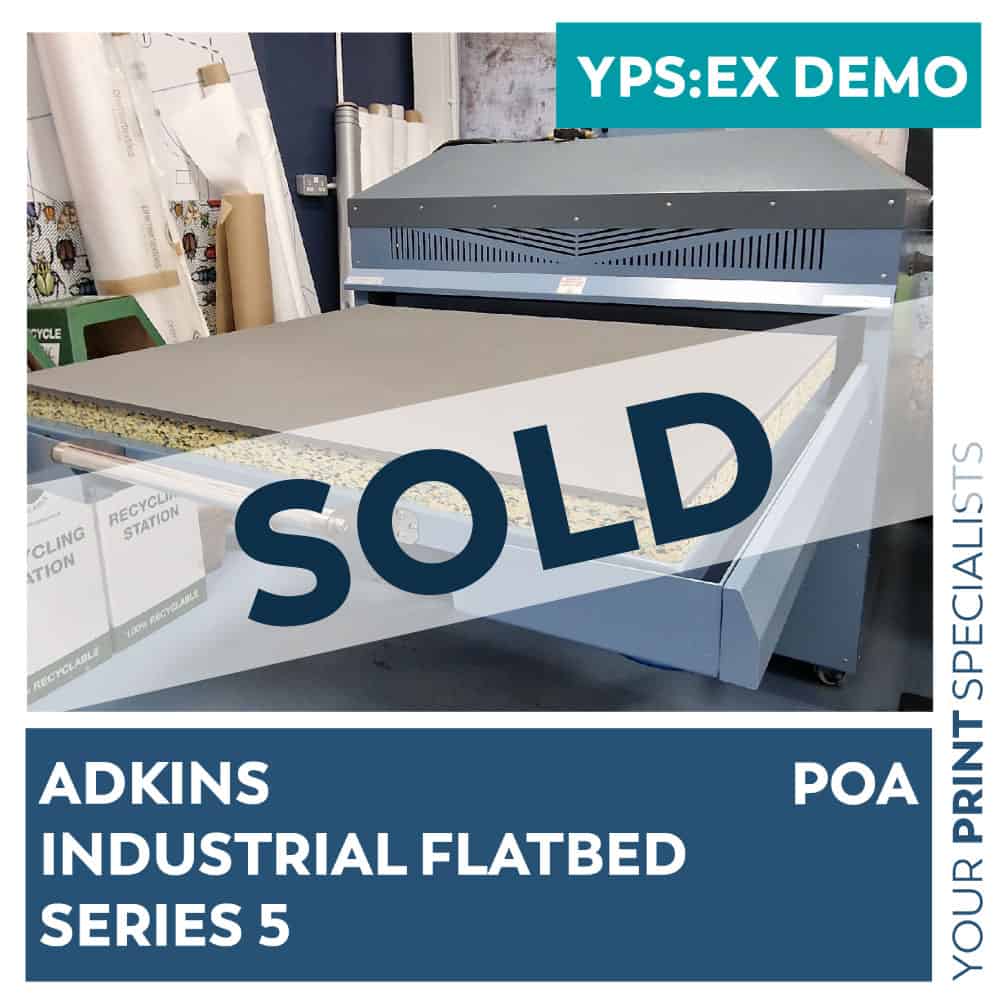

Ex demo Adkins Flatbed Series 5 Heatpress
POA
Ex demonstration Adkins flatbed series 5 heatpress available now. Used within the Your Print Specialists Creative Centre.
Year of manufacture: 2020
Table Size: 100 x 120cm
Requires Compressed air supply max: 6 bar. (Not Included).
Power required: 7.5 kW / Single phase (neutral + live + earth) / 230 Volts AC / 34 Amps
Temperature 70-225°C
Full details
The Alpha Industrial Flatbed Series 5 is part of the large format flatbed press range from Adkins. This pneumatically operated press has a large single table press area measuring 100 cm x 120 cm. The sliding lower table allows the operator to load the machine easily away from the heating element before pressing. This flatbed press is ideally suited for printing larger garment panels such as Sportswear, Flags and Upholstery fabrics using dye sublimation. The flat surface area also makes it suitable for sublimating both soft and hard signage.
The operator controls the pressure via a simple, fully adjustable air pressure gauge and locking air pressure control. Fully adjustable time and temperature are set via the controller and the LED display features a countdown timer.
Adkins Industrial Flatbed Series 5 Press
Features:
• Large single-table pressing area measuring 100 cm x 120 cm.
• PCB control system.
• Cast heating element.
• Single button control system.
• Manual or automatic operating modes with auto-open release system.
• Heat plate will not operate until directly aligned over the lower table.
• Fully adjustable temperature and pressure control.
• Electronic countdown timer.
• Emergency stop button that shuts off machine operation.
• In-built thermal cut-out on the heating element shuts off power.
Create:
- Soft Signage
- Garments
- Interior Décor
- Bedding
- Textile
- Flags and Banners
- Promotional print
- Sportswear
Your Print Specialists:
\Ex demo Adkins Industrial Flatbed Series 5
The Alpha Industrial Flatbed Series 5 is a 1m x 1.2m flatbed heatpress ideal for sublimating fabric and both soft and hard signage.
Table Size: 100 x 120cm
